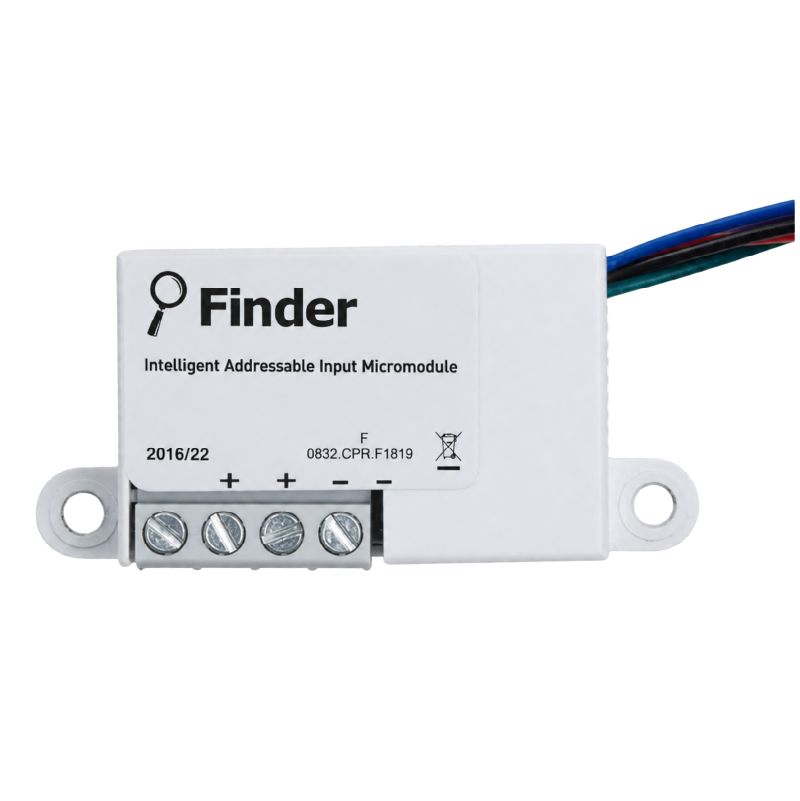

FF MIM250-1 Intelligent Addressable Input Micromodule With Short Circuit Isolator

FEATURES

  • 1 supervised input
  • Built-in short-circuit isolator
  • Voltage reading at addressed device terminals
  • Occupies 1 address on the loop
  • Three-colour LED indication (red / green / yellow)
  • Supports up to 240 addresses per loop
  • Compact ABS housing
  • Certified according to EN 54-17 and EN 54-18
  • Made in Italy

Type 1 supervised input
Addresses on Loops 1
Loop Capacity Up to 240 addresses
Supply Voltage 18 ~ 27V
Stand-by Consumption 130 µA
LED Current  Consumption 6 mA (LED on)
Operating Temperature -5°C ~ +40°C
Dimensions  42 x 27 x 15 mm
Weight   30 g
Humidity 95% RH
