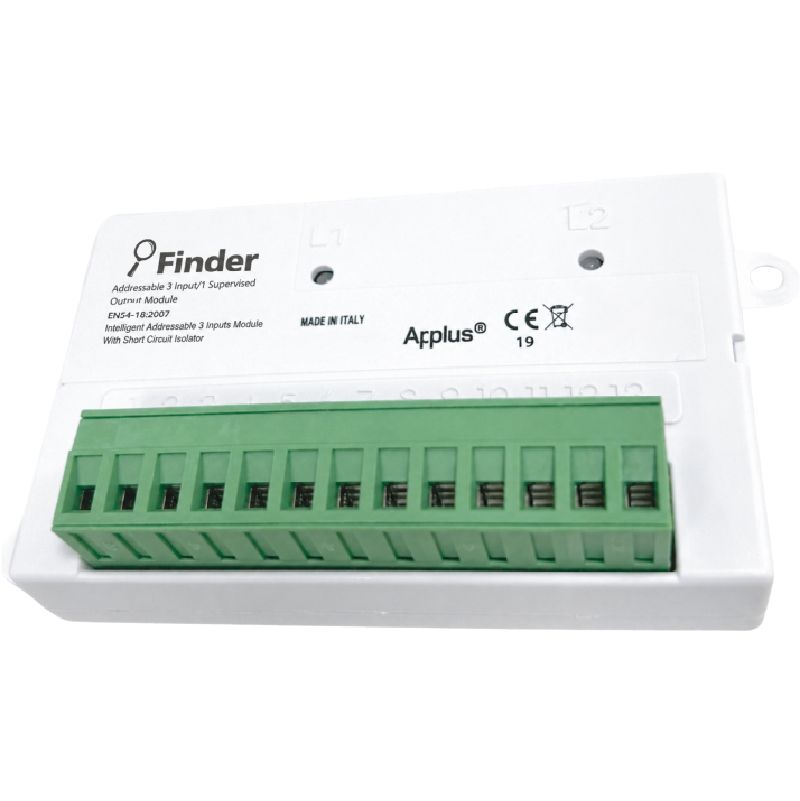

FF MIC250A-3/1 Intelligent Addressable 3 Inputs 1 Supervised Output Module With Short Circuit Isolator

FEATURES

  • 3 supervised input and 1 output channels for
     auxiliary device monitoring
  • Built-in short-circuit isolator
  • Voltage reading at the terminals of the addressed device
  • Three-colour status LED (red / green / yellow)
     controlled by the panel
  • Rest, alarm and fault condition monitoring through
     balancing resistors
  • Extractable terminal blocks (loop and field side)
  • Compact ABS housing (matt white)
  • Certified to EN 54-17 and EN 54-18
  • Made in Italy

Type 3 supervised inputs 3 monitored output
Addresses Occupied on Loop 4
Loop Capacity Up to 240 addresses
Supply Voltage 18 ~ 27 VDC
Stand-by Consumption 180 µA
Alarm Current  6 mA (LED on)
Status Indicator 3-colour LED
(red / green / yellow)
Dimensions 106 x 54 x 27 mm
Weight 100 g
Humidity 95% RH
