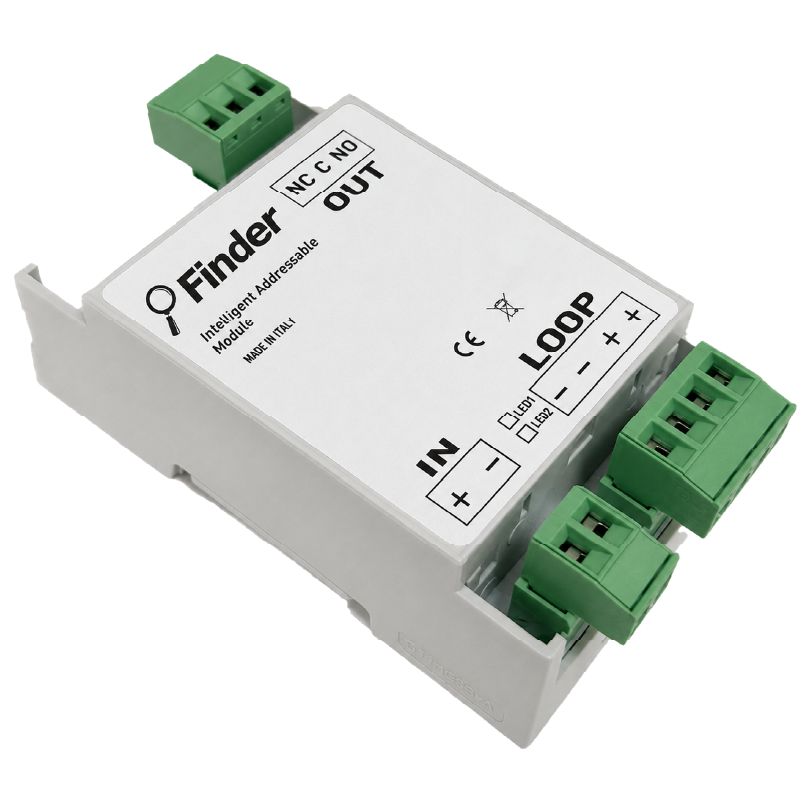

FF MIC250A-1/1R230 v 1 Input, 1 Relay Output for Power Loads

FEATURES

  • 1 conventional fire detection line input for connecting
     conventional devices
  • 1 form C relay output with potential-free contacts
  • Built-in short-circuit isolator
  • Voltage monitoring at relay output terminals
  • Occupies 2 addresses on the loop
  • Compact ABS housing , installable in any environment type
  • Extractable terminal blocks (loop and field side)
  • DIN rail or wall mounting
  • Certified according to EN 54-17 and EN 54-18
  • Made in Italy

Type 1  input + 1 relay output for power loads
Addresses Occupied on Loop 2
Loop Capacity Up to 240 addresses
Loop Voltage 18V - 35V
Average Current Consumption 140 µA @ 27V
LED Current Consumption 4,5 mA @ 27V
Relay Output 16A @ 250V AC
16A @ 24V DC
Operating Temperature -30°C ~ +70°C
Dimensions 90 x 64 x 32 mm
Humidity 95% RH
