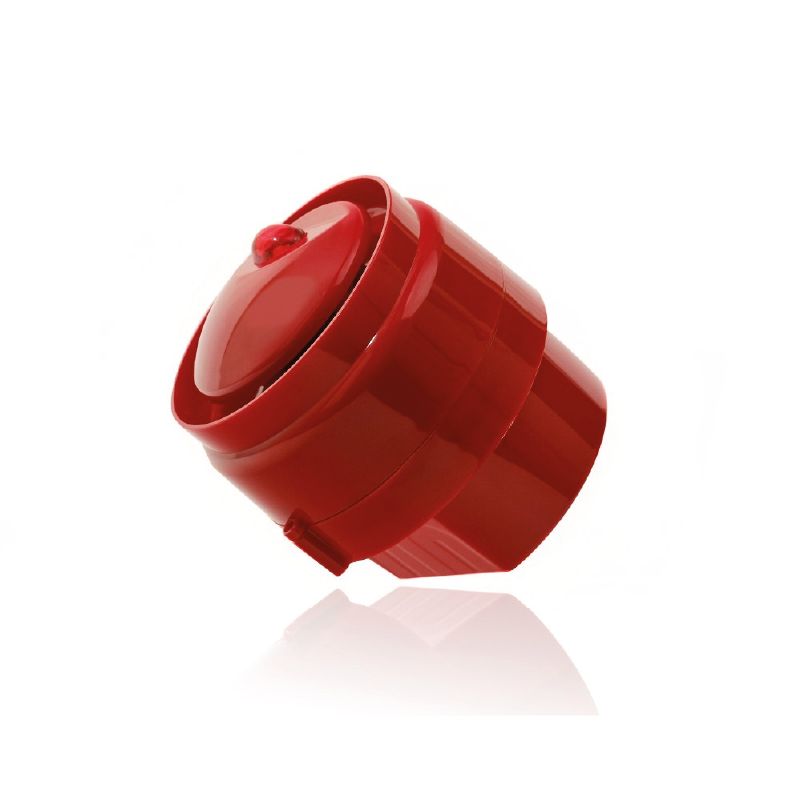

FF LSB251A Intelligent Addressable Sounder Beacon With Short Circuit Isolator

FEATURES

  • Built-in short-circuit isolator
  • Voltage reading at addressed device terminals
  • Addressable sounder structure
  • Extractable terminal board for easy installation
  • Deep base for easier loop wiring
  • 107 dB sound output
  • Glossy red ABS housing
  • IP65 protection with PG7 cable glands
  • Certified according to EN54-3, EN54-23 and EN54-17
  • Made in Italy

Supply Voltage 18 ~ 27V
Stand-by Consumption 230 µA
Alarm Consumption 35 mA
Absorbed Power 1.45 W
Sounder Voltage ON 24 VDC
Sound Output 107dB
Operation Temperature -10°C ~ +55°C
Degree of Protection IP65
Size Ø100mm x 92mm
Humidity 85% RH
