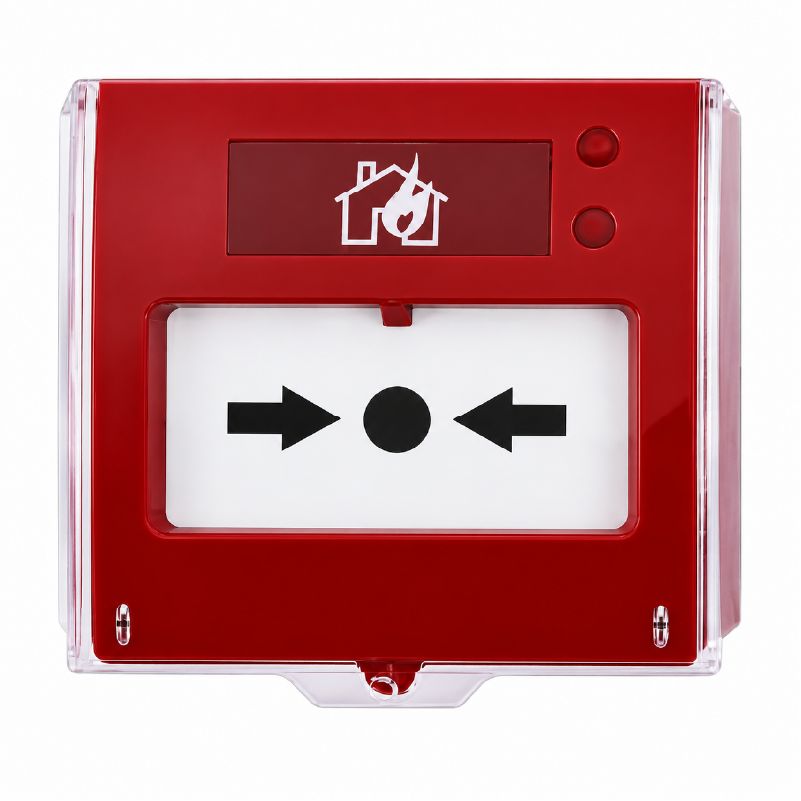

FF CP250A Intelligent Addressable Manual Call Point

FEATURES

  • Built-in short-circuit isolator
  • Voltage reading at addressed device terminals
  • Resettable with supplied key
  • Optional transparent protective cover
  • Removable terminal block for easy installation
  • Three-colour LED indication (red / green / yellow)
  • Supports up to 240 devices per loop
  • Compact red ABS housing
  • Certified according to EN 54-11 and EN 54-17
  • Made in Italy

Loop Capacity Up to 240 devices
Supply Voltage Range 18 ~ 27V
Stand-by Consumption 270 µA
Alarm Current 6mA (LED on)
IP Class IP30
Operation Temperature -20°C ~ +65°C
Dimensions 87 x 87 x 54 mm
Weight 110 g
Humidity 95% RH
